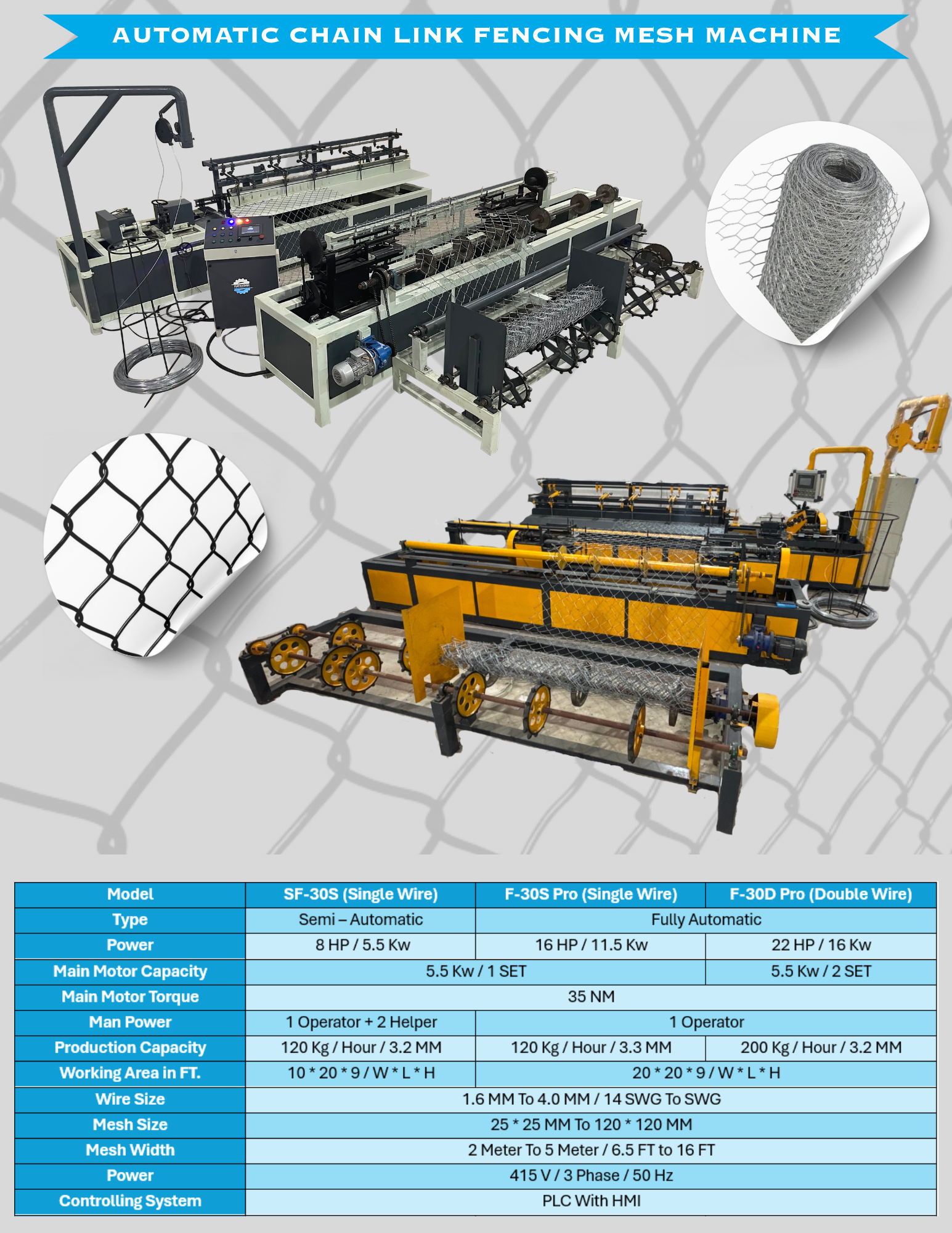

Automatic Chain Link Fencing Mesh Machine – Single and Double Dai Models

Product Specification

Hindustan Corporation: High-Quality Chain Link Fencing and Wire Welded Machines

Type of Machine:

• SF-30S: Semi-Automatic Single Wire Machine

• F-30S Pro: Fully Automatic Single Wire Machine

• F-30D Pro: Fully Automatic Double Wire Machine

Power Specifications:

• SF-30S: 8 HP / 5.5 kW motor for efficient wire mesh production

• F-30S Pro: 16 HP / 11.5 kW motor for high-speed, fully automatic operation

• F-30D Pro: 22 HP / 16 kW motor for heavy-duty double wire mesh production

Main Motor Capacity:

• SF-30S: Equipped with a 5.5 kW motor (1 set)

• F-30S Pro: Powered by a 5.5 kW motor (1 set)

• F-30D Pro: Dual motor setup with 5.5 kW (2 sets)

Main Motor Torque:

• All models deliver 35 NM torque for consistent performance

Manpower Requirements:

• SF-30S: Requires 1 operator and 2 helpers

• F-30S Pro: Requires only 1 operator

• F-30D Pro: Also requires 1 operator

Production Capacity:

• SF-30S: Produces up to 120 kg/hour with 3.2 mm wire

• F-30S Pro: Capable of producing 120 kg/hour with 3.2 mm wire

• F-30D Pro: Higher output with 200 kg/hour using 3.2 mm wire

Working Area (Dimensions in feet):

• SF-30S: Requires 10 x 20 x 9 ft space

• F-30S Pro: Requires 20 x 20 x 9 ft space

• F-30D Pro: Requires 20 x 20 x 9 ft space

Wire Size Range:

• All models handle wire sizes ranging from 1.6 mm to 4.0 mm, equivalent to 14 SWG to 8 SWG

Mesh Size Options:

• Adjustable mesh sizes from 25 x 25 mm to 120 x 120 mm on all models

Mesh Width Range:

• Customizable mesh widths from 2 meters to 5 meters (6.5 ft to 16 ft) across all models

Power Supply:

• All machines operate on a 415V, 3-phase, 50 Hz power supply

Control System:

• All models come equipped with advanced PLC control systems and HMI interfaces for easy operation
